CHEMICAL PROCESS PUMPS - "PPF"
Chemical Process Pumps Manufacturer for Chemical and Industrial Application
Operating Range for Chemical Process Pumps:
| Capacity Q Up to | 400 M³ / Hr |
|---|---|
| TDH - H - Up to | 140 MLC |
| Speed - n - Up to | 960 / 1450 / 2900 RPM |
| Temperature | -10° C to +250° C |
| Working Pressure | 40 Bar |
| Pumps Size DN | 32 mm to 200 mm |
GENERAL

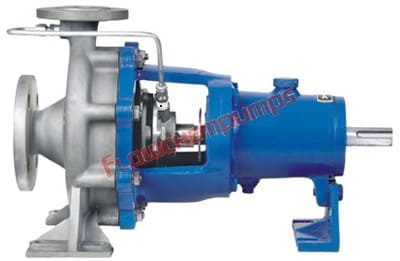

"Flowchem" Series PPF Pumps are "Chemical Process Pumps" in Back Pull-out Construction, Horizontal, Foot Mounted, Single stage, End suction and Top Centerline Discharge, confirming to DIN 24256 / ISO 2858, standards and in general confirming to API 610 as well.
Chemical Process Pump Applications:
| Industry | Services |
|---|---|
| Chemicals, Dyes & Intermediates | Organic/Inorganic Chemicals |
| Oil Extraction And Waste Oil Refineries | Hydrocarbons / Volatile Liquids |
| Bulk Drugs & Pharmaceuticals | Dyes & Intermediates |
| Effluent Treatment Plants | Water Treatment & Distribution System |
| Heating & Air Conditioning Plants | Thermic Fluid / Hot Oil |
| Cooling Towers | Corrosive / Abbrasive Liquids |
Construction Options for Chemical Process Pumps:
- Chemical Process Pumps offered with closed or semi open impeller.
- Impellers are provided either with Back Vane or Back Wear Ring to minimize Axial Thrust and Gland Leakage.
- Flange Rating PN 16 to PN 64 and drilled to DIN standard to meet ISO 2858 requirements.
- Flange Rating to BS / ASA Standards also offered.
-
Various Shaft Sealing Available are,
a.Gland Packing ( ASB. / NON ASB. depending on the service.)
b. Moulded Graphite Rings.( GRAFOIL PACKING )
c.Mechanical Seals (Single or Double Mechanical Seal Arrangements.).
- JJacketing for heating/cooling offered for Casing, S/Box, Casing Pedestal and Bearing- Housing,
- Standard Bearing / Special Heavy Duty Bearing arrangements available.
Materials Of Construction For Chemical Process Pumps :
- AS PER ASTM / DIN STANDARDS
- GRADED GREY CAST IRON
- CARBON STEEL(WCB) / ALLOY STEEL
- CF8, CF8M, CF3, CF3M (SS316L), ALLOY 20, CD4MCu
- NICKEL & Ni-ALLOYS, NI-RESIST, 2% NiCI, R 55, HASTELLOY -B / C
- GUN METAL / BRONZE
