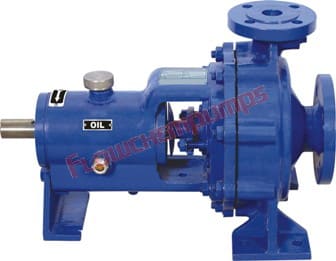

CENTRIFUGAL WATER PUMPS - "CWP"
Centrifugal Water Pumps for Water Circulation Application
OPERATING RANGE :
| Capacity Q Up to |
400 M³ / Hr |
| TDH - H - Up to |
140 MLC |
| Speed - n - Up to |
960 / 1450 / 2900 RPM |
| Temperature |
120 ºC |
| Working Pressure |
15 Bars |
| Pump sizes – DN - |
32 mm to 200 mm |
GENERAL
"Flowchem" Series CWP Pumps are Centrifugal Water Pumps in Back Pull-out Construction, Horizontal, Foot Mounted, Single stage, End suction and Top Centerline Discharge, Confirming to DIN 24255.
PRODUCTS APPLICATIONS :
| INDUSTRIES |
SERVICES |
| CHEMICALS, DYES & INTERMEDIATES |
COOLING WATER CIRCULATION |
| OIL EXTRACTION AND WASTE OIL REFINERIES |
WATER TREATMENT & DISTRIBUTION SYSTEM |
| BULK DRUGS & PHARMACEUTICALS |
HOT WATER CIRCULATION |
| EFFLUENT TREATMENT PLANTS |
|
| COOLING TOWERS |
|
CONSTRUCTIONAL OPTIONS FOR CENTRIFUGAL WATER PUMPS :
-
Offered with Closed Impeller.
-
Impellers are provided either with Back Vane or Back Wear Ring to minimize Axial Thrust and Gland Leakage.
-
Flange Rating PN 16 and drilled to DIN standards.
-
Shaft Sealing by Gland Packing ( ASB. / NON ASB. depending on the service.)
-
Standard Bearing Arrangements.
MATERIALS OF CONSTRUCTION FOR CENTRIFUGAL WATER PUMPS :
- AS PER ASTM / DIN STANDARDS
- GRADED GREY CAST IRON
- CARBON STEEL(WCB) / ALLOY STEEL
- CF8, CF8M, CF3, CF3M (SS316L), ALLOY 20, CD4MCu
- NICKEL & Ni-ALLOYS, NI-RESIST, 2% NiCI, R 55, HASTELLOY -B / C
- GUN METAL / BRONZE
