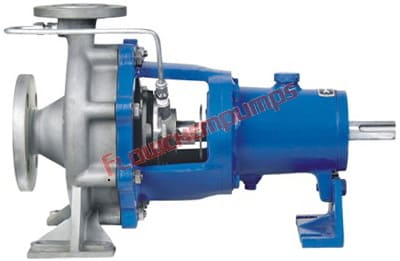

AIR COOLED THERMIC FLUID PUMPS- "PPC-A"
Centrifugal Process Pumps for Hot Oil / Thermic Fluid Application
Operating Range for Thermic Fluid Pumps:
| Capacity Q Up to | 80 M³ / Hr |
|---|---|
| TDH - H - Up to | Up to 60 MLC |
| Speed - n - Up to | 960 / 1450 / 2900 RPM |
| Temperature | 300° C |
| Working Pressure | 15 Bars |
GENERAL
"Flowchem" Series PPC-A pumps are Centrifugal Pumps in Back Pull-out Construction, Horizontal, Foot Mounted, Single stage, End suction and Top Centerline Discharge, Air Cooled, Suitable for Thermic Fluid & Hot Oil also.
Thermic Fluid Pumps Applications :
| INDUSTRIES | SERVICES |
|---|---|
| CHEMICALS, DYES & INTERMEDIATES | THERMIC FLUID / HOT OIL |
| OIL EXTRACTION AND WASTE OIL REFINERIES | |
| BULK DRUGS & PHARMACEUTICALS | |
| THERMIC FLUID HEATING SYSTEMS |
Construction Options:
- Offered with Closed Impeller.
- Impellers are provided either with Back Vane/ Wear Ring to minimize Axial Thrust and Gland Leakage.
- Flange Rating PN 16 and drilled to DIN standard to meet ISO 2858 requirements.
- Shaft Sealing by, Mechanical Seal.
- Standard Bearing / Special Heavy Duty Bearing arrangements available.
Materials of Construction:
- AS PER ASTM / DIN STANDARDS
- CARBON STEEL(WCB) / ALLOY STEEL.
- CF8, CF8M, CF3, CF3M (SS316L), ALLOY 20, CD4MCu.
